Water Cooled 395nm Led UV Curing For Offset Printing

Brand Name : Birduv

Certification : CE

Place of Origin : China

MOQ : 1 - 4 Sets

Price : negotiable

Supply Ability : 100 Set/Sets per Month

Packaging Details : Carton

Warranty : 1 YEAR, 1 Year

Packaging Type : Film

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Type : Coating Machine

Applicable Industries : Machinery Repair Shops, Printing Shops, Advertising Company

After Warranty Service : Video technical support

Local Service Location : None

Showroom Location : None

Condition : New

Application : Food, Commodity, Medical, Chemical, Machinery & Hardware, Textiles, UV coating machine

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/380V

Dimension(L*W*H) : 45MM hight , length can be choosed

Weight : 50KG

Key Selling Points : Energy saving

Product name : UV LED for UV coating machine

Wavelength : 385nm/395nm, 365nm+395nm mix wavelength

LED chips : LG Uv Led

Package Type : COB

Cooling Method : Water cooling

Irradiance : 30W/cm2 at 395nm

Input Voltage : AC220V/380V

Service time : 20000HRS

Port : Shezhen, Guangzhou

Contact Now

Water cooling offset relief printing machine Heidelberg KBA Ryobi UV LED curing lamp system

Main Features

1) LG LED chip, best quality COB package, special structure design good heat dissipation, very strong light intensity

2) 0-10V auto control and manual control can be choosed, the light intensity can change according light intensity

3) UV LED bad warning and over temperature warning
4) RS485 communication and port is provides

Product Application

Bird UV's UV LED CURING system have already successful used in deferent models of offset printer also UV coating machine. Including the bellowed model but not all
Man Roland: Roland 500, Roland 700
Heiderberg: CD102,CD105,CD740,MO650, SM74
Komori: L440, L428,L429

For this super size 20W/cm2 UV LED curing system is special design install in the interdeck of offset printer which have very narrow space, the lamp hight only 45MM, working distance 20MM-70MM.

If want install lamp at end of press, working distance 70MM-100MM should use our 30W/cm2 UV LED curing system

See the bellowed light intensity according different working distance

Detailed Images
Water Cooled 395nm Led UV Curing For Offset Printing

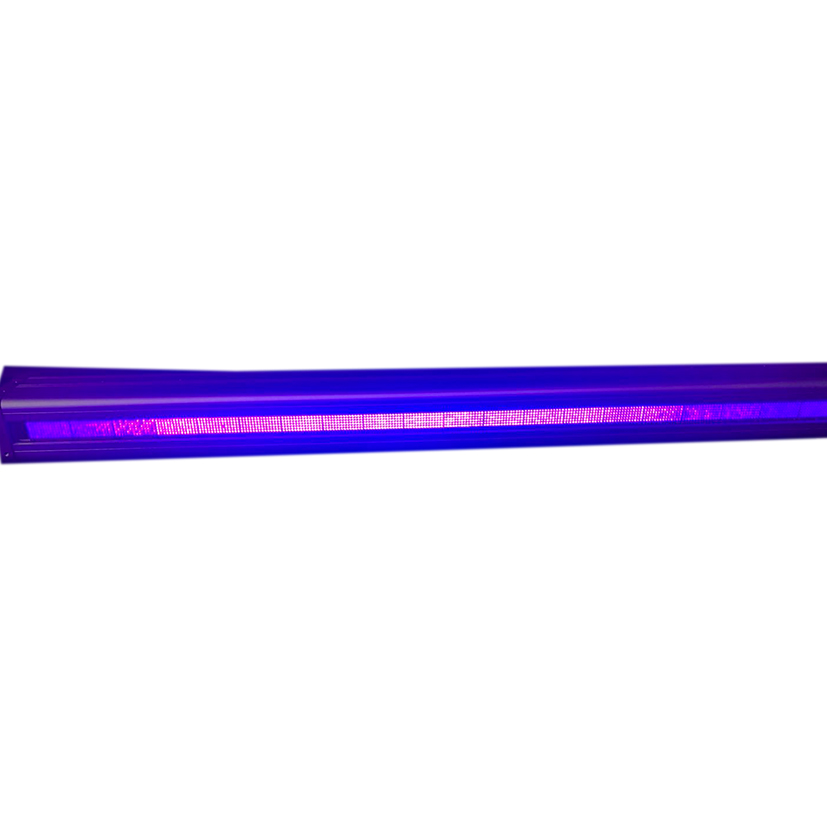

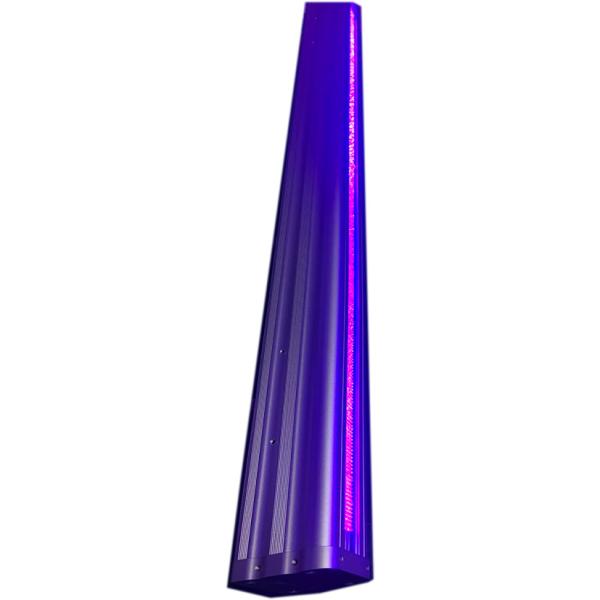

UV LED Lamp

LG LED chip, best quality COB package, special structure design good heat dissipation, very strong light intensity max 30W/cm2

UV LED driver

Standard 2.5U size very conveniet for electric cabinet
BOWB676: 3PCS standard UV LED driver
BOWB780: 3PCS standard UV LED driver
BOWB1040: 4PCS standard UV LED driver
Emerson power supply from United States
Easy to ON/OFF and adjust light intensity

Water Cooled 395nm Led UV Curing For Offset Printing
Water Cooled 395nm Led UV Curing For Offset Printing

Water chiller

Different chiller capacity can be choosed according different UV LED lamp
Water flow switch is supplied, no water flow lamp not working

UV LED control system

1. show lamp working information
2. can control single UV LED chip, parts of the UV LED lamp on/off
3. Show warning information for checking

Water Cooled 395nm Led UV Curing For Offset Printing
Company Information

Bird UV is a factory based in Shenzhen, China. After 10 years developing, Bird UV have full experience in printing industry, Adhesive and wood curing.

We offer Strong UV Light Curing System Online


At the beginning of Bird UV, we insist two rules: one quality is first, never send bad quality products to customer, the other is never stop developing new products.

To meet the market requirement, Bird UV have very strong UV Light Curing System with an intensity 40W/CM2 for sheetfed offset printer, high speed flexo printer, gravure printer and web offset printer, all the system can controlled by PLC.

FAQ

Q1: Why do I replace a UV LED Lamp?

A1: UV LED's working time is more than 20,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is more effective, save 70% of energy costs and environment friendly.

Q2: Do all of current UV chemicals work well with UV LED?

A2: No, The chemical must be specifically to take advantage of the narrow Wavelength, please ask for your supplier for the best wavelength, and then we can customized the most suitable and high-efficiency wavelength for you.

Q3: What about the warranty period?

A3: All of Bird UV products come with a full two-year warranty, Moyoho can offer the parts for free if any parts demanged in warranty.

Q4: What about the after-sales service?

A4: Bird UV provides spare parts for replacement, and 24 hours online and video technical support.

Q5: How to get the best solution with right price?

A5: There are some important information we need to know before offering:

1, What do you use it for or in what machine is it to be installed? (such as, it will be used for offset printing machine Heidelberg CD102 )

2. Which wavelength do you require or what UV chemical do you want to cure? (It depends on your UV chemical, such as 365/375/385/395/405/415nm and so on.)

3. What size of emitting window do you need?(It depends on your product’s size or curing method)

4. How much peak irradiance do you need?(It depends on your UV chemical and your max producing speed.)

5. If any spec of common set can't meet your requirement, don't worry! CUSTOMIZED solutions are available.
